Parsun Joy 1.2
SKU:
Product Details

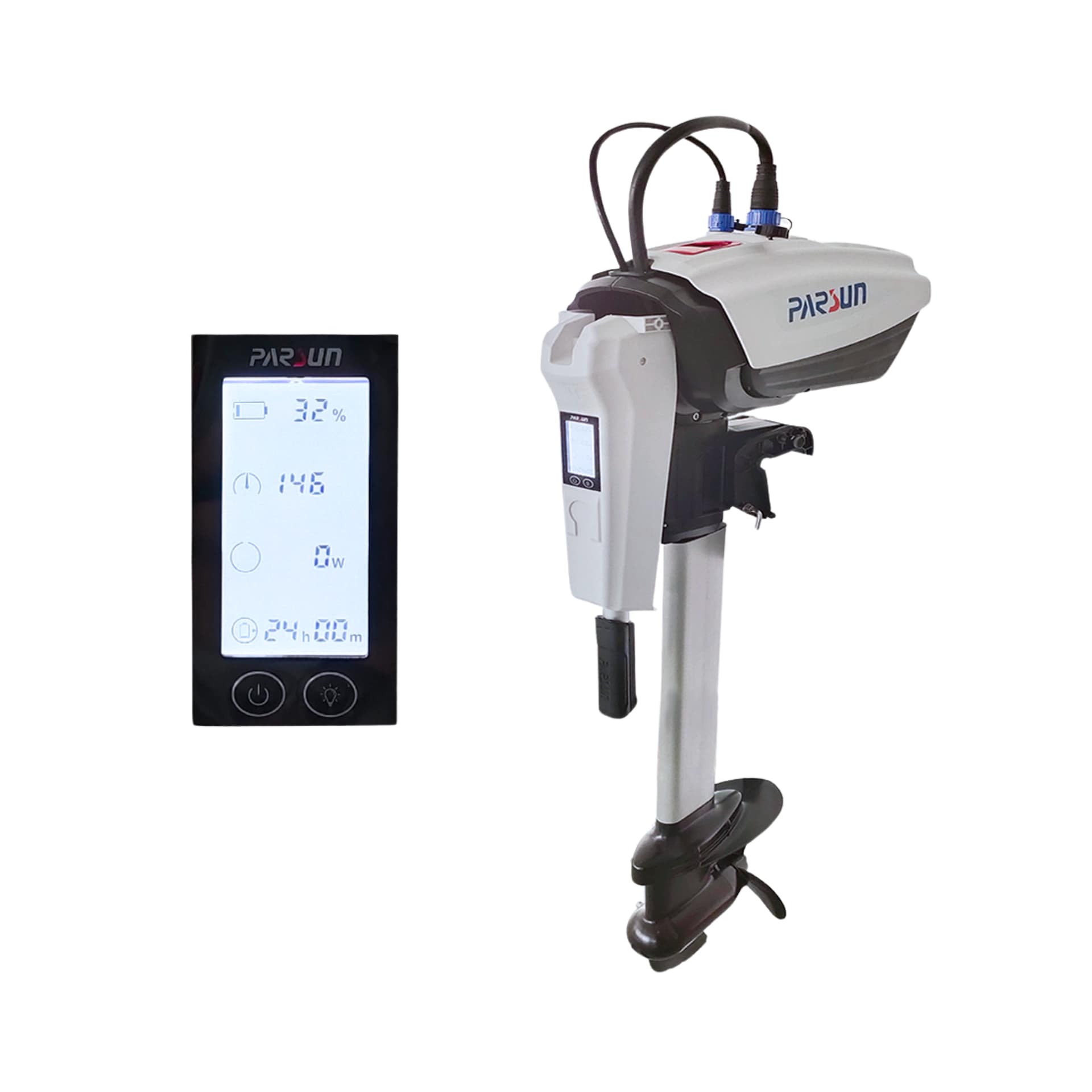

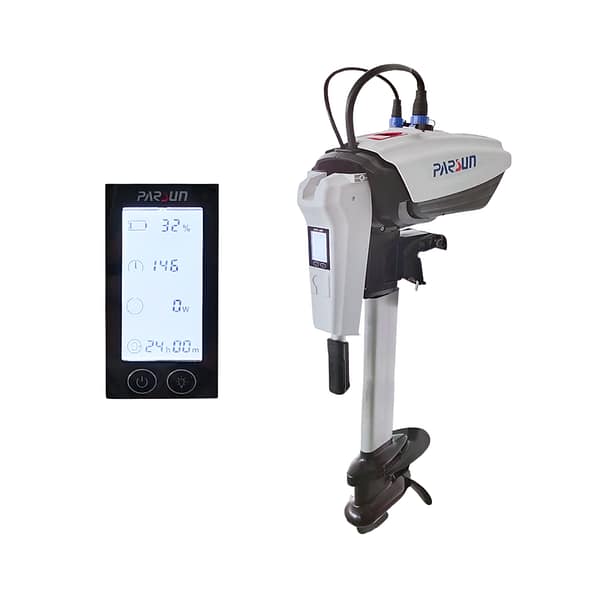

The Parsun Joy 1.2 is a lightweight, portable 3HP electric outboard motor, ideal for use with your Terraflo pontoon boat.
Equipped with a powerful built-in lithium battery, it offers extended autonomy for all your waterside adventures.
Designed for environmentally-friendly cruising, this electric motor provides a quiet, efficient and sustainable experience , reducing your carbon footprint without compromising performance.
*taxes and delivery not included.
Motor specifications
| Features | Details |
|---|---|
| Power | 1.2 kW |
| HP equivalent | 3 HP |
| Battery | 1440 Wh |
| Rated voltage | 36V |
| Total weight | 23.5 kg |
| Battery weight | 9.2 kg |
| Charging time | 8 h |
| Engine | PMSM |
| Autonomy at full power | 1 h 12 min |
| Cruising range | 24 h |
| Sleep mode | After 30 min. |
| Protection class | IP67 |
| Nominal RPM | 1750 |
| Can be used in salt water | Yes |
| Emergency stop | Yes |
Performance chart and autonomy
| Power (W) |
Speed (mph / kph) |
Operating time (hh:mm) |
Range (mile / km) |
|---|---|---|---|
| 600W | 4.3 / 6.9 | 2:24 | 10.3 / 16.6 |
| 800W | 4.8 / 7.7 | 1:48 | 8.6 / 13.9 |
| 1000W | 5.2 / 8.3 | 1:26 | 7.5 / 12 |
| 1200W | 5.4 / 8.7 | 1:12 | 6.5 / 10.4 |
| * These data come from PARSUN's R&D laboratory. Actual speed and range vary according to boat type, load and water conditions. | |||
